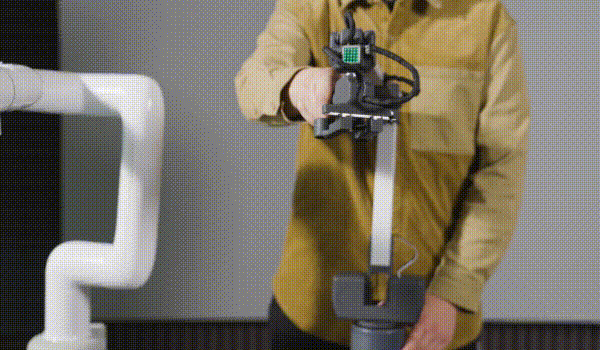

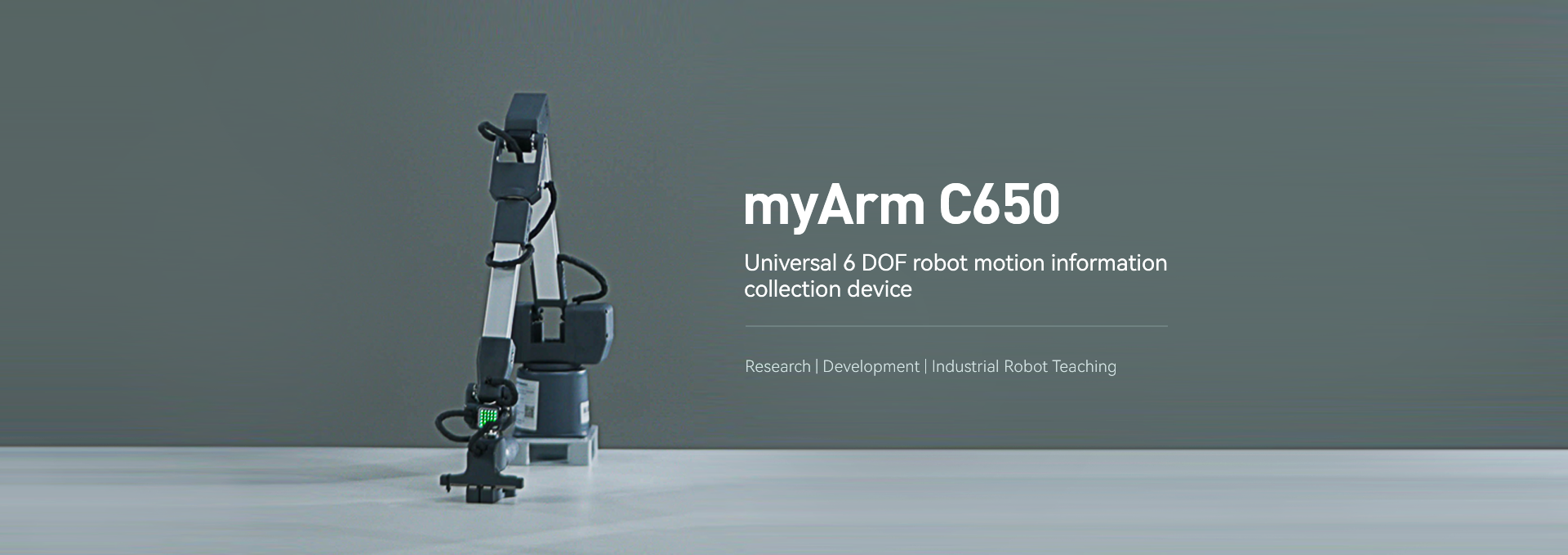

The myArm C650 is a universal 6-DOF (Degrees of Freedom) robot motion information collection device developed by Elephant Robotics. The "C" stands for Controller: rather than acting as a payload-bearing arm, it functions as a master teleoperation controller and data collector that you move manually by hand to drive other execution robots in real time.
Equipped with a fingertip controller and custom smart buttons at the end, it outputs joint angles or endpoint coordinates at high speeds, making it an essential hub for robotics research, teleoperation, ALOHA-style AI imitation learning, and kinematic algorithm validation.
Key Applications and Functions
- Universal Teleoperation Hub: Functions as an intuitive teach pendant to remotely control execution arms such as the myArm M750, myCobot Pro 630, and Mercury X1 dual-arm humanoid robot.
- High-Speed Data Collection: Streams motion data (position, velocity, coordinates) at 50Hz or higher, providing essential dataset generation for AI training and machine learning models.

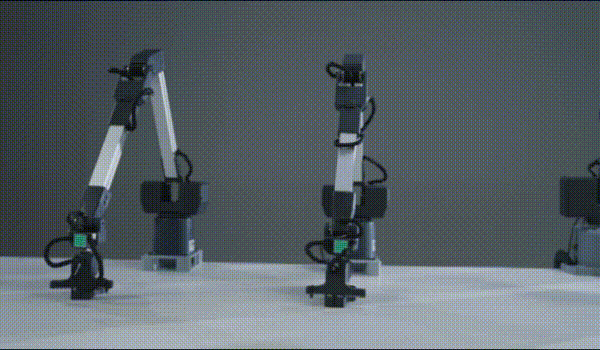

- Human-Arm Movement Simulation: The 6+1 axis flexible joint structure accurately mirrors human arm and hand motions for versatile multi-angle control.
- Algorithm Validation and Teaching: Serves as a hands-on tool for educational institutions and research labs to test inverse kinematics and teleoperation control algorithms.
Technical Specifications and Parameters
- Degrees of Freedom (DOF): 6+1 (6 motion joints + fingertip control, expandable to 7 DOF)
- Working Radius: 650 mm
- Total Span: 1300 mm
- Positioning Repeatability: +/- 1 mm
- Net Weight: 1.8 kg to 1.95 kg
- Sensors and Actuators: 8 high-precision digital servo motors equipped with 4096-bit magnetic encoders
- Joint Rotation Range: +/- 180 degrees
- Communication Frame Rate: Greater than 50 Hz real-time output
- End Controller Interface: Dual-finger touch control with 2 custom smart buttons and Atom 5x5 LED matrix
- Connectivity and Power: USB Type-C interface; 12V 5A power adapter
Software, Programming and Control Options
The open ecosystem allows researchers and software developers to record, analyze, and process motion data easily.
Programming Support
- Languages and Frameworks: Native support for Python and ROS (Robot Operating System)
- AI and Machine Learning Support: Compatible with data training frameworks for motion cloning, teleoperation, and computer vision tasks
- Real-Time Data Output: Streams Cartesian coordinates, joint angles, and speed vectors continuously for secondary development
Official Management Tool: myStudio
myStudio serves as the primary one-stop software platform for myArm. It handles:
- Firmware updates
- Video tutorial access
- Maintenance, repair guides, and Q and A resources
